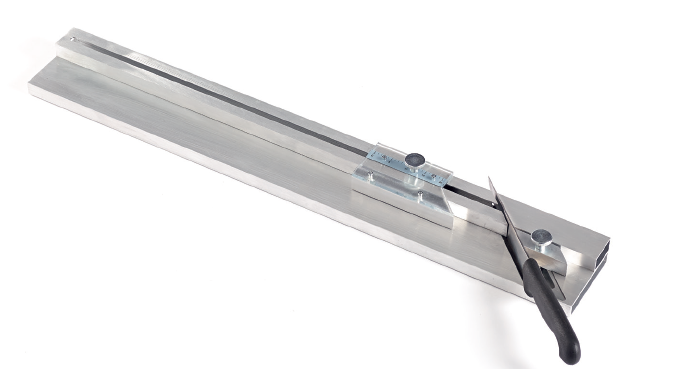

Braided Packing Cutter
Product Description
The cutter is designed to cut braided packings at 45° angles. The diagonal cuts are carried out with help of a guide, so that each ring is identical to the other. This device allows all ring seals to be cut directly from the reel without off-cuts or waste. The cutter offers the following advantages:
- Ease of use
- Precise cutting of Rings
- Very Manageable
- Exact Joints
- Cuts Sections from size 3mm x 3mm to 30mm x 30mm
- Can be used to make rings with a maximum diameter of 140mm
Instruction On Use
Adjust the cutting device according to the seal cross-section and diameter of the shaft required. For this purpose, line up the cross-section indicator on the cursor with the shaft diameter on the scale of the tool. In this way, an additional length of material is guaranteed. For precise cuts without additions, the “0” of the section indicator on the cursor must be linked up with the shaft diameter plus the seal section on the tool scale. Tighten the stop screw slightly to hold the cursor at the point measured. Pull the seal from the reel. Place the end of the 45° bevelled seal into the angled crosspiece of the cursor, place the seal on the device and using your fingers, press the natural curve of the seal slightly downwards. This is important for correctly cutting the seal and shaping the ring. Secure the seal with the clamping claw and then cut.
Important: Check the length of the first ring seal cut on the shaft (the cut ends must be closed; a small amount of play between the internal diameter of the seal and the shaft is ohwever necessary). If the length is correct, you can now proceed to quickly and accurately cut all the remaining seals. If the length is not correct, adjust and check again.
Important: Check the length of the first ring seal cut on the shaft (the cut ends must be closed; a small amount of play between the internal diameter of the seal and the shaft is ohwever necessary). If the length is correct, you can now proceed to quickly and accurately cut all the remaining seals. If the length is not correct, adjust and check again.
