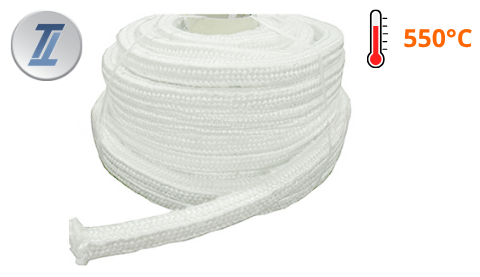

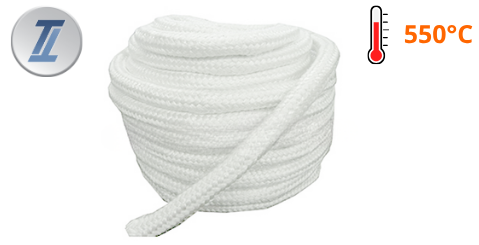

E Glass Rope Packing

Product Description
  • E glass packing is braided / plaited entirely using 6-9µ E glass yarns into round, square or rectangular rope sections.
  • E glass yarns are textured and rated to 550°C in optimum conditions.
  • The base fibres are inorganic, sterile, incombustible and they have low thermal conductivity making them excellent in high temperature industrial oven and furnace door sealing applications.
  • E glass rope packing are available in three different constructions each with their own unique characteristics as explained below.
Constructions Explained
  1. Standard packings are produced by braiding E glass fibre yarn over a compact core of glass fibre yarns. They are compact, firm and flexible with high mechanical resistance and excellent static sealing properties.
  2. Soft core packings are produced by braiding E glass fibre yarns around a central core of C glass fibre insulation. Soft core packings whilst still dense, are lighter in weight but importantly more flexible than standard or brick solid packings. They have high thermal insulation capacity and excellent static sealing properties.
  3. Brick solid packings are produced by the "Braid-over-Braid" method where E glass fibre yarns are heavy braided over a very compact core of braided glass yarns. Brick solid packings are a total braided construction and are therefore exceptionally compact, brick solid in density and maintain superior mechanical resistance under pressure, compression and abrasion.

*Standard packings account for 90% of all packings produced, therefore if the construction type is not known, it is standard construction which we will quote for.

Applications
  • Rope Door Seals for Furnaces / Kilns / Industrial Ovens and Boilers.
  • Component of ‘O' Ring Rope Gasket Seals.
Further Enhancements

Textile Technologies can further enhance the above loomstate rope packings as follows:

  • Apply a dry black graphite dispersion to improve abrasion resistance and aesthetics.
  • Apply a wet black graphite dispersion to improve sealing qualities and resistance to hot gases.
  • Apply a dry or wet PTFE coating to seal the fibres and create a more non stick and impermeable surface.
  • Apply a vermiculite dispersion to improve abrasion resistance and increase its temperature resistance up to 1000°C.
  • Apply an outer coating / impregnation of Industrial or Food Grade Silicone Polymer to improve sealing attributes specifically in hot moist environments.
  • Incorporate a steel wire in to the yarns to further reinforce the packings and improve tensile strengths.
  • Apply a metal overbraid from galvanised steel, stainless steel or inconel to greatly improve the abrasion resistance and increase the life of the seal. Options include:
    • Metal Open Overbraid
    • Metal Knitted Overbraid
    • Metal Full Coverage Overbraid
    Please see our ARMORPACK range for more details.
